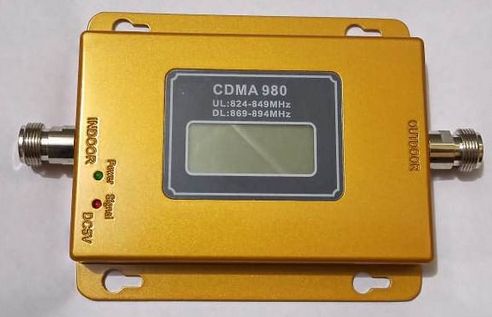

Jio 4G Mobile Signal Booster

JIO LTE 4G/CDMA 850/800MHz 4G Micro repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Micro repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Micro repeater mainly solves the problem spot problem in building. The coverage area is as large as 100 square meters in open space, and 100 square meters in partial obstacle area, 100 square meters in complete obstacle area. The edge power level for coverage area is above -85dBm. The repeater output power level is less than 17dBm. Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection. Micro Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 50 M2-100M2,which is a very economical solution. The output power is up to 20dBm per carrier. Meanwhile, it can also boost the speed of GPRS.

Installation Steps :

• Fix up the outdoor antenna on housetop or some other high place and aim to desired signal tower
• Connect outdoor antena to the repeater"BTS" port via Co-axial cable
• Setup Indoor Ceiling Mount Antenna near cell phone using area
• Conncet indoor antenna to the repeater "MOBILE" port via Co-axial cable
• Plug the AC power Adapter into power source and finished
